Waterworks
Security & Safety
Protect What Matters Most
From clear identification to durable protection and tamper deterrence, safety and security are essential in every underground utility installation. Bingham & Taylor offers a range of solutions—including pipeline markers, protection sleeves, stabilizers, and valve sentinels—designed to enhance safety, streamline maintenance, and help prevent damage or unauthorized access. Explore our proven products engineered to safeguard your infrastructure above and below the surface.
Made in U.S.A.
At Bingham & Taylor, we take pride in manufacturing 100% American-made underground utility access solutions.
Cathodic Protection
Secure Access for Utility Monitoring & Locating: Reliable, tamper-resistant access—ideal for utility locating and performance monitoring. Designed for long-term reliability and ease of use, these boxes support effective monitoring and protection of metallic pipelines and tracer wire systems.

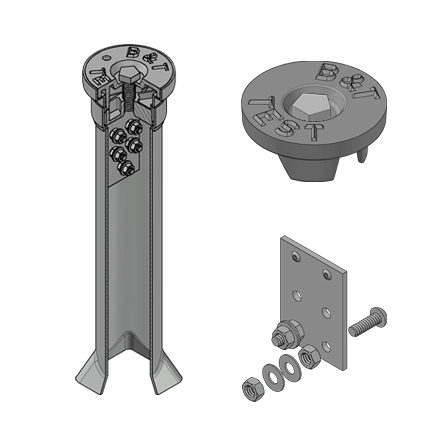

2½" Cathodic Protection Test Stations with CNG-Style Rim
Cathodic Protection Test Station & Terminal Access boxes are built for strength, reliability, and long service life.
- Material: ABS plastic with cast iron CNG-style rim & lid; Optional heavy-duty rims available for roadway installations
- Lids: Secure pentabolt lid allows readings without removal; Cast iron or plastic, FIBER, CP TEST, GAS, SEWER, TEST, TRACER WIRE, WATER, or custom lettering; Choose blue, black, green, orange, red, or yellow
- Base: Flare (circular or square) prevents pull out or settling
- Optional 10′ coiled tracer wire with locating magnet

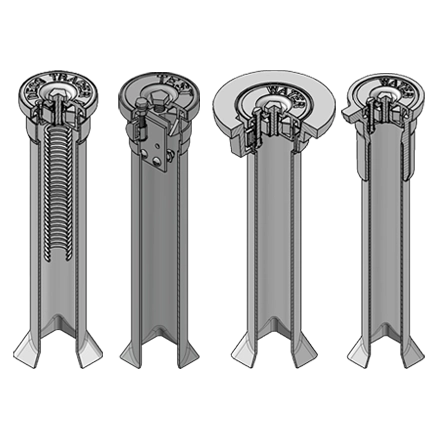

2½" Cathodic Protection Test Stations with CNG-Style Rim Options
Cathodic protection test stations with the CNG-style rim in four different styles to meet your requirements.
- P2BCNGTRC: With 10′ coiled tracer wire
- P2B202CNG: Designed for light duty
- P2B202CNGLGE: With wide rim for concrete installs
- P2B202CNGHVY: Designed for heavy-duty use including asphalt installs

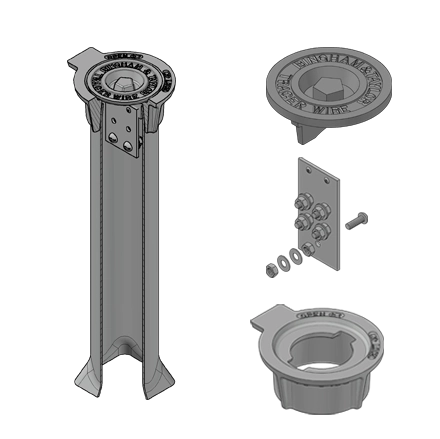

2½" Cathodic Protection Test Stations with NFG-Style Rim
Durable ABS plastic paired with a cast iron NFG-style rim and drop-turn locking lid.
- Material: ABS plastic with cast iron NFG-style rim & lid
- 0–5 terminals for cathodic protection or tracer wire
- Telescoping or separate top/bottom sections for installation flexibility; Direct tracer wire connection; Compatible with polyethylene pipe
- Lids: Secure pentabolt lid allows readings without removal; Cast iron or plastic; FIBER, CP TEST, GAS, SEWER, TEST, TRACER WIRE, WATER, or custom lettering; Choose blue, black, green, orange, red, or yellow
- Base: Flare (circular or square) prevents pull out or settling

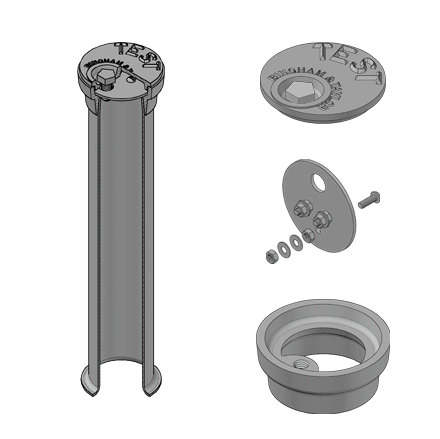

2½" Cathodic Protection Test Stations with P200-Style Rim
Durable ABS plastic paired with a cast iron NFP200-style rim. Chose a cast iron or ABS plastic pentabolt locking lid.
- Material: ABS plastic with cast iron P200-style rim & either cast iron or ABS plastic lid
- 0–3 terminals for basic connection setups
- Telescoping or separate assemblies available
- Lid: Cast iron or ABS plastic; Lettering: GAS, TEST, or WATER; Colors: Blue, black, green, or yellow
- Base: Flare (circular or square) prevents pull out or settling

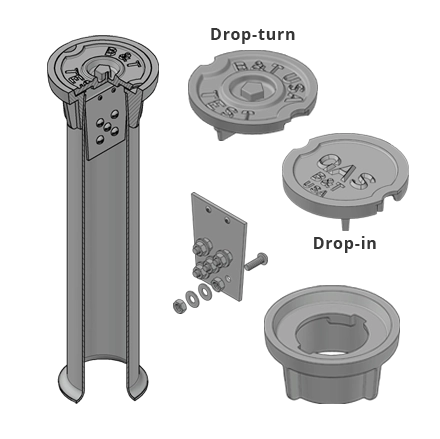

4" Cathodic Protection Test Stations with 334DT-Style Cast Iron Rim
Durable ABS plastic paired with a 334DT-style cast iron rim & your choice of drop-in or drop-turn locking lid.
- Material: ABS plastic with 334DT-style cast iron rim & choice of drop-in or drop-turn locking lid
- 0–7 terminals for basic connection setups
- Lid: Drop-turn locking lid; Lettering: GAS or TEST; Color: Black or yellow
- P4B334DT: Choose 12″ or 18″ height or 18″ x 18″ telescoping
- Base: Flare (circular or square) prevents pull out or settling

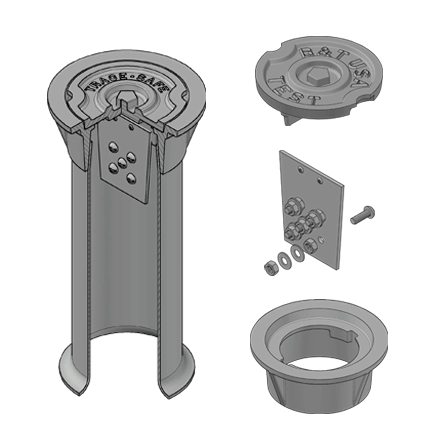

4" Cathodic Protection Test Stations with 445DT-Style Cast Iron Rim
Durable ABS plastic paired with a 445DT-style cast iron rim & your choice of drop-in or drop-turn locking lid.
- Material: ABS plastic with 334DT-style cast iron rim & choice of drop-in or drop-turn locking lid
- 0–7 terminals for basic connection setups
- Lid: Drop-turn locking lid; Lettering: GAS, CP TEST, TEST, or WATER TEST; Color: Black or yellow
- P4B445DT: Choose from 12″, 18″, 24″ or 36″ height or 24″ x 24″ or 36″ x 36″ telescoping
- Base: Flare (circular or square) prevents pull out or settling

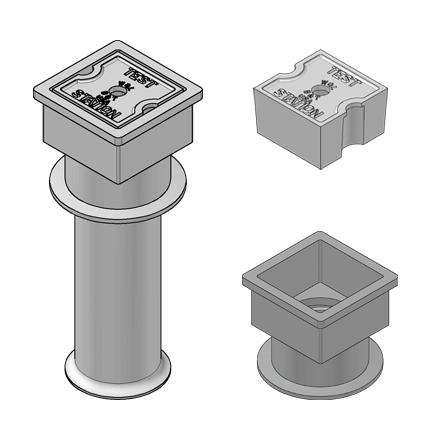

4" Cathodic Protection Test Stations with 106 Square-Head Cast Iron Rim
Durable ABS plastic paired with a 106 square-head cast iron rim & your choice of drop-in lid.
- Material: ABS plastic with 106 square-head cast iron rim & drop-in lid
- 0–7 terminals for basic connection setups
- Lid: Drop-turn locking lid; Lettering: TEST STATION; Color: Black
- 106: 18″ height
- Base: Flare (circular or square) prevents pull out or settling

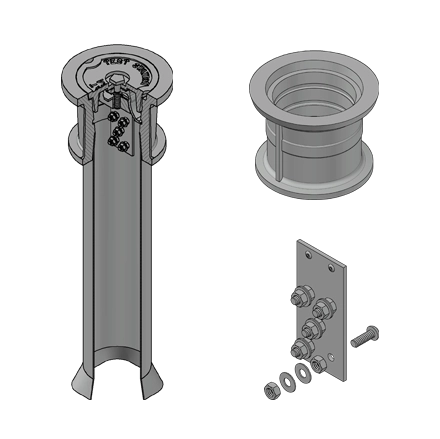

4" Cathodic Protection Test Stations with Heavy-Duty Cast Iron Rim
Engineered for roadway and runway installations, this box features a heavy-duty, double-flanged, cast iron rim and locking drop-in lid that is H20 proof-load and FAA runway-load rated, ASTM A-48 Class 30. Body is ABS plastic.
- Terminals: 0–7 for basic connection setups
- Lid: Drop-in locking lid; Lettering: GAS or TEST STATION; Color: Yellow
- Heights: Choose from 18″, 24″ or 36″
- Base: Flare (circular or square) prevents pull out or settling
- Options: Terminal jumpers and paving risers in 1″-6″ heights available

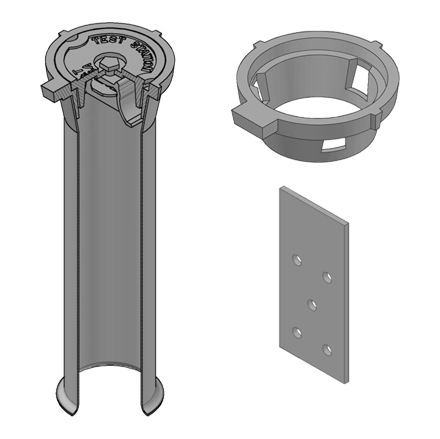

4" Cathodic Protection Test Stations with HWL Heavy-Duty Cast Iron Rim
Durable ABS plastic paired with a heavy-duty cast iron rim & a drop-in locking lid with center pentabolt.
- Terminals: 0–7 for basic connection setups
- Lids: Choose drop-in or drop-turn locking lid with center pentabolt; Lettering: GAS, TEST, or WATER; Color: Black or yellow
- Height: 18″
- Base: Flare (circular or square) prevents pull out or settling
5¼" Cathodic Protection Test Stations - Heavy-Duty P5B525 Rim
Engineered for roadway and runway installations, this series of boxes features a heavy-duty cast iron rim that is H20 proof-load and FAA runway-load rated, ASTM A-48 Class 30. Body is ABS plastic. Choose from drop-in or drop-in locking lids.
- Terminals: 0–8 terminals for basic connection setups
- Height: 18″
- Lids: Lettering: TEST; Color: Yellow
- Base: Flare (circular or square) prevents pull out or settling
- Options: Paving risers available

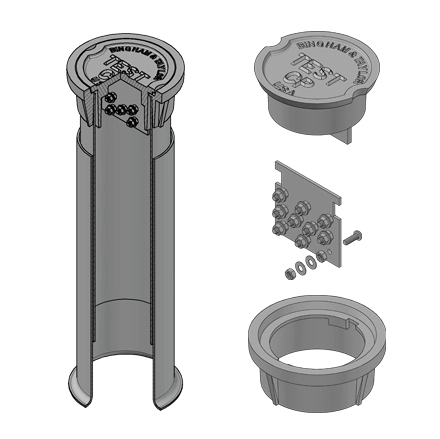

5¼" Cathodic Protection Test Stations - Heavy-Duty Rim P5BNM5
Engineered for roadway and runway installations, H-20 proof-load rated & FAA runway load tested. These boxes feature a heavy-duty, ASTM A-48 Class 30 cast iron rim & your choice of drop-in or drop-turn locking lid.
- Terminals: 0–7 terminals; Terminal box or block hooks underneath the lid.
- Heights: 18″ 0r 24″ length or 18″ x 18″ telescoping top & bottom sections available
- Lids: Lettering: CP TEST, GAS DRIP, GAS TEST, or TEST CP; Colors: Black or yellow
- Base: Flare (circular or square) prevents pull out or settling
- Options: Paving risers available

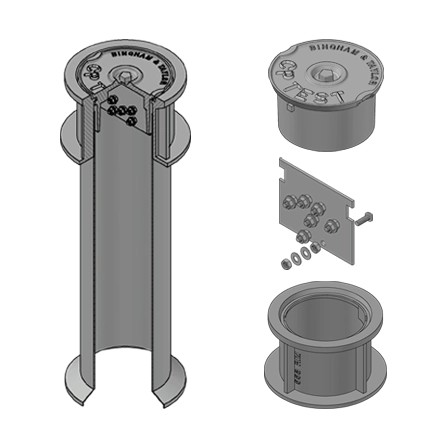

5¼" Cathodic Protection Test Stations with Heavy-Duty Rim P5B668DT
Engineered for roadway and runway installations, H-20 proof load rated & FAA runway load tested. These boxes feature a heavy-duty, ASTM A-48 Class 30, double flanged cast iron rim & drop-turn locking lid. Body is ABS plastic. Terminal box or block hooks underneath the lid.
- Terminals: 0–7 terminals for basic connection setups
- Height: Choose 18″ 0r 24″ length or 24″ x 24″ telescoping top & bottom sections available
- Lids: Lettering: CP TEST, SEWER, or WATER TEST; Colors: Blue, green, or yellow
- Base: Flare (circular or square) prevents pull out or settling
- Options: Paving risers available
Heavy-Duty Lids to Prevent Pop-Outs
Our heavy-duty cast iron lids are engineered to prevent dangerous pop-outs, delivering a secure, tapered fit that resists vibration, uplift, and traffic impact—all to keep crews and communities safe.

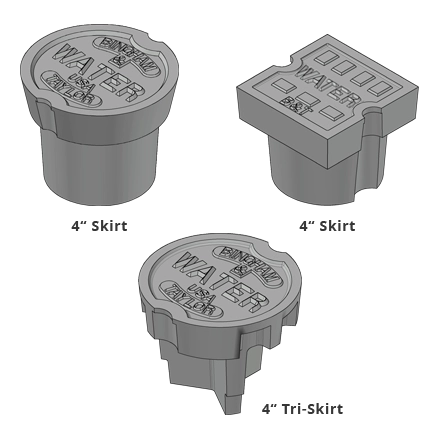

5¼” Valve Boxes: Cast Iron Heavy-Duty Lids
Prevent dangerous and costly lid pop-outs. Our cast iron heavy-weight 5¼” lids feature a tapered, secure fit—resisting vibration and uplift, enhancing road safety.
- 4″ skirt: Extra long design and 25 lb. weight help this lid resist vibration and uplift – available in round or square
- Tri-Skirt: Unique triple contact and tapered 4″ skirt and 22 lb. weight deliver maximum retention
- Strength: H-20 load-rated and ideal for traffic areas in excess of 45 mph.
- Lettering: Choose WATER, SEWER, or custom
Leak Detection
Ensure safe, reliable signal transmission for leak monitoring systems. Available as full assemblies or standalone lids, these solutions offer flexibility, durability, and peace of mind.
Leak Detection Lid Assemblies & Inserts
Engineered for reliability in harsh environments, our complete assemblies pair a cast iron lid ring with a patent-pending composite insert to protect and support monitoring equipment.
- Material: Composite insert for superior signal transmission paired with rugged, cast iron lid ring
- Cast iron ring resists dislodging; composite insert ensures signal clarity and sensor protection
- Standard 5¼” size fits most valve box top sections; different sized cast iron lid rings and inserts available to fit different sized valve boxes
- Multiple slots and holes for cables, brackets, screws, or zip ties
- Optional geolocation via integrated Utility Near Surface Marker (UNSM)
Leak Detection Lid with Thru-Holes for Sensors
Designed for AMR/AMI compatibility, these cast iron lids include a recessed thru-hole to accommodate leak detection sensors—supporting strong, uninterrupted signal transmission.
- Standard 5¼” lid diameter
- Circular, recessed thru-hole for sensors
- Durable cast iron construction with tamper resistance
- Custom lettering and sizing available
Locking Lids
Security and safety products protect more than systems—they protect communities. Locking lids deliver durable, field-proven solutions that help safeguard water access and infrastructure integrity.

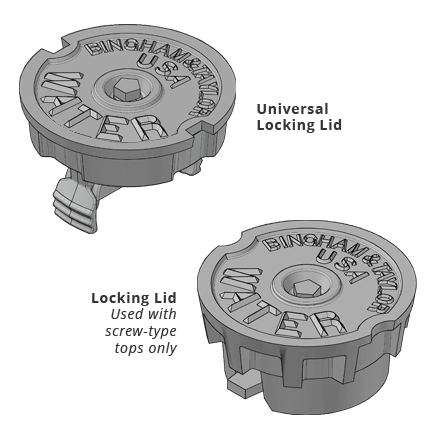

5¼" Locking Lids
Engineered for a secure, tamper-resistant fit that minimizes lid ejections, we offer two locking lids: the Universal Locking Lid features locking legs that brace firmly against the valve box interior to prevent movement and ejection. The Locking Lid for screw-type boxes features a locking bar that secures the lid to the underside of the rim.
- Both are compatible with any 5¼” valve box
- Tamper-resistant design reduces risk of lid displacement
- Lid lettering options: WATER, SEWER, or custom
Stabilizers
Designed to keep valves & meters centered and secure in their access boxes, stabilizers minimize settling and protect valve coatings from abrasion. A simple, reliable solution that improves alignment and longevity.

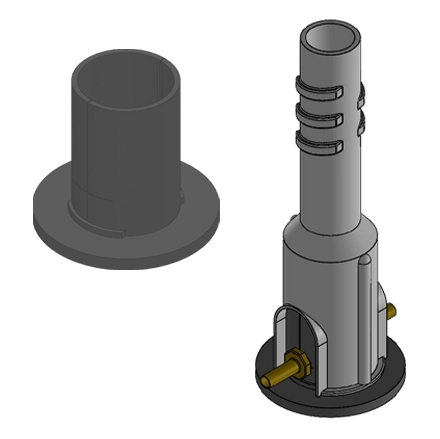

2½" Curb Box Stabilizers - ADP-CSA (ADP80003)
Engineered for most 3⁄4″ – 2″ curb stops/valves. Accommodates a wide-range of arched bottom sections, including cast iron, standard ABS plastic, Bison™, and CIP curb boxes.
- Minimizes settling and shifting of the curb box
- Centers valve box directly over the operating nut
- Helps prevent backfill from entering the box, maintaining a clear and functional valve area
- Preserves the valve’s epoxy coating, protecting it from environmental damage
- Inquire about sizes for 2½” curb box enlarged bases
Valve Box Stabilizer: Multi-Fit (ADP90010)
For use with 5¼” Bison™ Valve Box with the 101 bell and 8″ or C-900/C-905 PVC pipe. Multi-Fit adapters have elongated slots to accommodate numerous valve types and sizes.
- Specs: Inner diameter is 9″; Center hole diameter is 1.63″
- Minimizes settling and shifting of the valve box
- Centers valve box directly over the operating nut
- Helps prevent backfill from entering the box, maintaining a clear and functional valve area
- Preserves the valve’s epoxy coating, protecting it from environmental damage

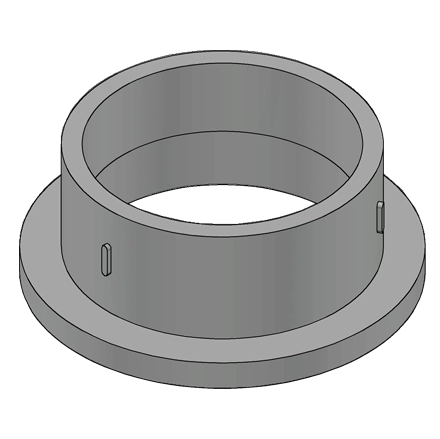

Valve Box Stabilizers - ADP-VBII
For 5¼” cast iron Bison™, ABS plastic, or CIP valve boxes with 4″, 6″, or 8″ valves. Compact, heavy-duty stabilizers engineered to fit snugly inside the bottom section.
- Specs: Inner diameter of 7.75″ and no center hole; ADP-VBII A, B or C: fit 4″, 6″, or 8″ valves
- Fits: 5¼” 2-pc screw- and slide-type cast iron bottoms (61, 62, 64 and 61-S, 62-S, 64-S), & 5¼” 2-pc Bison 101 & 106 bottoms
- Use: Minimizes settling and shifting of the valve box; Centers valve box directly over the operating nut
- Helps prevent backfill from entering the box, maintaining a clear and functional valve area
- Preserves the valve’s epoxy coating, protecting it from environmental damage

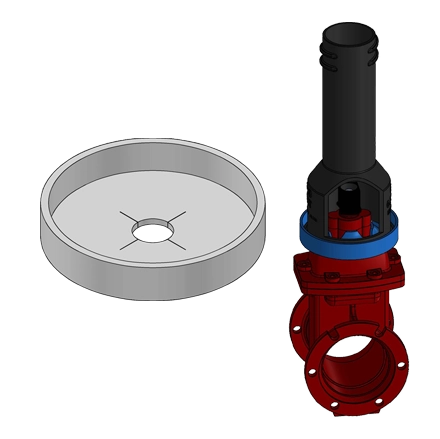

Valve Box Stabilizers: Multi-Fit (ADP5001002S)
For use with 5¼” cast iron, 2-piece valve box with a steel valve. Multi-Fit adapters have elongated slots to accommodate many valve types and sizes.
- Specs: Inner diameter is 9.9″; Center hole diameter is 2″
- Minimizes settling and shifting of the valve box
- Centers valve box directly over the operating nut
- Helps prevent backfill from entering the box, maintaining a clear and functional valve area
- Preserves the valve’s epoxy coating, protecting it from environmental damage

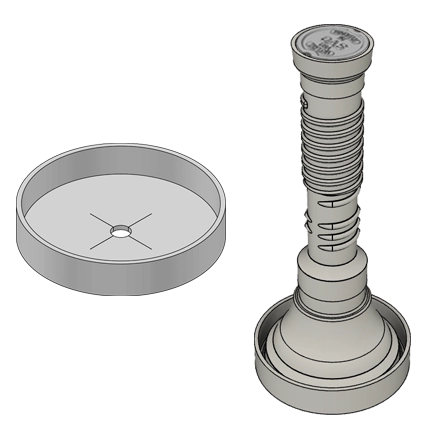

Valve Box Stabilizers: #6 Base (ADP5001006S)
Stabilizer for 5¼” valve boxes with a #6 base or a Bison™ 107 bottom bell, a P12B, or a P15B. For use with steel valves.
- Specs: Inner diameter is 18″; center hole diameter is 2″
- Minimizes settling and shifting of the curb box
- Centers valve box directly over the operating nut
- Helps prevent backfill from entering the box
- Protects the valve’s epoxy coating during installation and service
Valve Sentinels
Maximum protection & security for your valves. Built for real-world conditions, Bingham & Taylor Valve Sentinels safeguard buried valves and give crews the visibility and confidence they need to work quickly and safely.

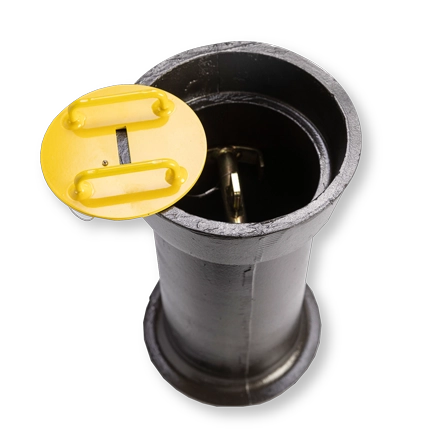

Valve Sentinels
Valve Sentinels provide reliable protection against unauthorized access, theft, and tampering. Designed for lock-out/tag-out protocols, these devices are easy to install and compatible with all valve boxes.
- Material: Made from high-strength carbon steel
- Compatibility: Work with all valve box manufacturers and come in a variety of sizes to fit valve boxes between 3⅞” to 12¾”.
- Available as full assemblies or expander bar and plate components
- Assembled units include plate and expander bar connected with a durable lanyard that prevents the lid from falling into the valve box
- Plates available in yellow, blue, or red to stand out and provide clear identification
Looking For Something Entirely Unique?
We regularly collaborate with utilities to develop fully customized solutions. If your project requires something outside of our standard offering, our in-house engineers can guide you from prototype to production—ensuring performance, fit, and functionality every step of the way.
